Rollei35T的大解剖

So you guys are right! i've bought this rollei 35T
你們都猜對了!我買了rollei 35T

so let me do some review on this camera today
今天讓我來介紹這部相機吧~

it is a compact and fully manual film camera
這是一部嬌小玲瓏的全手動相機

i dunno the history of it
我還沒研究過它的歷史

but i just love the look of this camera
可是我很喜歡這部相機的經典外觀

the size is slightly smaller than lca
整體上它比LCA還小一點



look so handsome huh!
看起來很帥吧!


this is the front look of it
相機的前面


from the side look, this is the look before the lens is pull out
側面,儅鏡頭還沒有拉出來時


after you pull out the lens, turn in clockwise direction from front to lock it
儅你把鏡頭拉出來時,就要順時轉把它卡着


this is the asa dial
這個是調感光度用的


and this is the dial to make note of what film you use.
而這個實提醒自己在用着什麽菲林


and this is the tessar lens which made by rollei to reduce cost, originally is made by carl zeiss
這是rollei製作的tessar lens, 早期的是carl zeiss做的


this is the shutter speed which located at the film type dial
這就是調快門的啦~

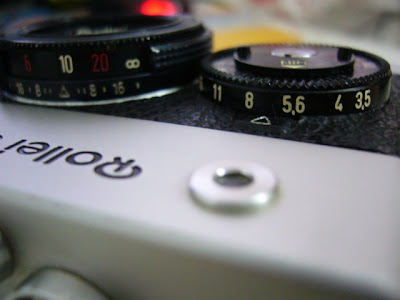

and this is the apperture dial which located on top of the asa dial
這是調光圈的,在調asa的上面


and this is the focus ring in the unit of feet, it is located on top of the lens
這就是調距離的焦距,在鏡頭上面的是用feet來算的


this is the focus ring which located on the bottom of the ring, in the unit of m.
在鏡頭下面的卻是用m來算的,很特別吧~


this is the bottom view of the camera, and the things on the left is the rewind film knob, the middle one is tripod hole
相機的下面,在左邊的是回片器,中間的是腳架洞


this is the hot shoe for flash
這就是方閃光燈的hot shoe


this is the top part of the camera, the advance film knob is on the left, very special
這是相機的上面,過片器在左邊,很特別


this is the light meter, adjust the shutter and apperture till the orange one met with the white one
測光器,把光圈和快門調到橙色的那個針和白色那個在一起就可以拍了


there is another two button, the top one is the button to keep the lens back to camera, and the bottom one is the shutter
這裡有兩個按鍵,上面哪個是把鏡頭收回時按的,下面哪個是快門,我時常按錯


this is the viewfinder and the film advance knob, the R stuff is the things you have to lift up in order to rewind the film when finish taking picture
觀景器還有過片器,R的那東西就是儅你拍完整卷菲林時,把它推上去,就可以回片了


this is the back cover after you open it
開了機背


detail of it
仔細得看看吧~


this is the spool part and the frame part
底片室


this is where to put in the film
把菲林放在這裡


and this is the part you open up and put in battery
這裡是放電池的


open up the cover when you need to put in the film
進菲林時要把這個開起來

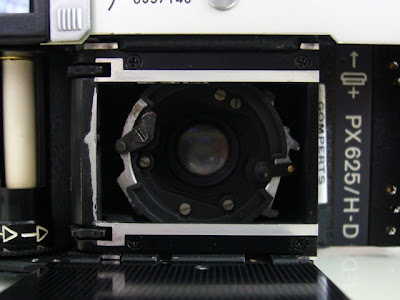

this is the structure of the lens part
這就是相機裏的結構

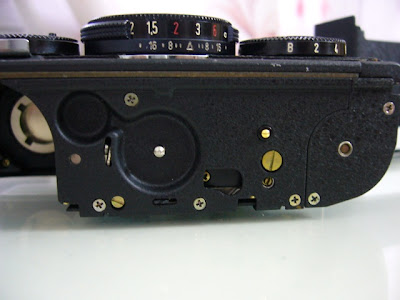

bottom part of camera when the cover is remove
相機下面


warning:
when you pull out the lens, turn clockwise to lock it, when you want to push it back, always remember to turn the advance film knob first and after that press the button and turn the lens anticlockwise to keep it back and also to remember to pull out the lens when you want to rewind the film.
儅你把鏡頭拉出來時,記得要順時針轉,當你要把鏡頭收回時,千萬要記得過片先,然後按回收鏡頭鍵,在逆時針轉,在收回去。還有,當回片時,千萬計的要把鏡頭拉出來。
